FlexERGO
Part Manipulator Arms
Torque Reaction Arms
CVA-10 Arm Vertical V-Block Tool Mount
| Torque – 10 ft/lbs |
| Reach – 8”-28” |
| Counterbalance Capacity: 1-10 lbs |
FAV-14 Arm Vertical V-Block Tool Mount
| Torque – 10 ft/lbs |
| Reach -19”-37” |
| Counterbalance Capacity: 1-15 lbs |
LR-40
| Torque – 40 ft/lbs |
| Reach – 8″ – 31″ |
| Counterbalance Capacity: 1 -10 lbs |
AR-40
| Torque – 40 ft/lbs |
| Reach – 4″- 27″ |
| Counterbalance Capacity: 1-10 lbs |
A-32 Arm Vertical V-Block Tool Mount
| Torque – 50 ft/lbs |
| Reach – 11”-34” |
| Counterbalance Capacity: 1-12 lbs |
M-60 Arm Vertical V-Block Tool Mount
| Torque – 80 ft/lbs |
| Reach – 22”-76” |
| Counterbalance Capacity: 1-16 lbs |
S-36 Arm Vertical V-Block Tool Mount
| Torque – 80 ft/lbs |
| Reach – 14”-51” |
| Counterbalance Capacity: 1-35 lbs. |

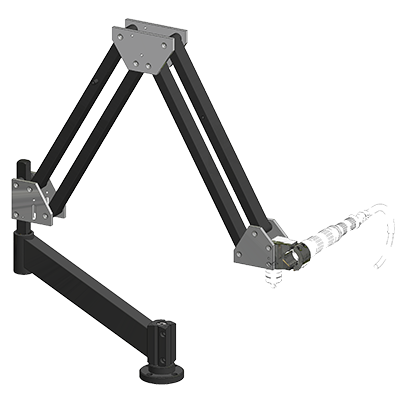

G-30 Arm *Needs Custom Tool Mount
| Torque – 150 ft/lbs |
| Reach – 17”-73” |
| Counterbalance Capacity: 5-39 lbs. 30-50 lbs -Optional |
G-36 Arm *Needs Custom Tool Mount
| Torque – 400 ft/lbs |
| Reach – 20”-78” |
| Counterbalance Capacity: 5-45 lbs 46-75 lbs -Optional |
G-60 Arm *Needs Custom Tool Mount
| Torque – 800 ft/lbs |
| Reach – 20”-84” |
| Counterbalance Capacity: 5-45 lbs 46-75 lbs -Optional |
Balance Arms
B-19 Vertical V-Block Tool Mount
| Torque – 100 ft/lbs |
| Counterbalance Capacity: 1-35 lbs |
| Reach – 3”-31” |
| Air: 90 PSI |
B-19-RG Rotational Gimbal
| Torque – NA |
| Counterbalance Capacity: 1-25 lbs |
| Reach – 1”-56” |
| Air: 90 PSI |
B-33 Vertical V-Block Tool Mount
| Torque – NA |
| Counterbalance Capacity: 1-40 lbs |
| Reach – 10″-53″ |
| Air: 90 PSI |
B-33-RG Rotational Gimbal
| Torque – NA |
| Counterbalance Capacity- 1-25 lbs |
| Reach – 1″- 72″ |
| Air: 90 PSI |
S-36 Locking Cylinder Arm
| Torque – 80 ft/lbs |
| Counterbalance Capacity: 1-35 lbs |
| Reach – 14”-51” |
| Air: 90 PSI |
Part Manipulator Arm 23″ Vertical Stroke
PM-22-S PM-22-A
| Reach – 16”-64” |
| Vertical Stroke- 23” |
| Lift Capacity: 0-200 lbs |
| Air: 90 PSI |
PM-23-S PM-23-A
| Reach – 4”-76” |
| Vertical Stroke- 23” |
| Lift Capacity: 0-150 lbs |
| Air: 90 PSI |
PM-24-S
| Reach – 8”-88”d |
| Vertical Stroke- 23” |
| Lift Capacity: 0-200 lbs |
| Air: 90 PSI |
Part Manipulator Arm 38″ Vertical Stroke
PM-32-S PM-32-A
| Reach – 28”-76” |
| Vertical Stroke- 38” |
| Lift Capacity: 0-150 lbs |
| Air: 90 PSI |
PM-33-S PM-33-A
| Reach – 16”-89” |
| Vertical Stroke- 38” |
| Lift Capacity: 0-150 lbs |
| Air: 90 PSI |

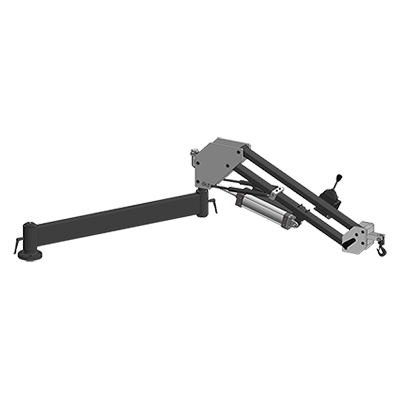

PM-34-S
| Reach – 4”-101” |
| Vertical Stroke- 38” |
| Lift Capacity: 0-150 lbs |
| Air: 90 PSI |
Part Manipulator Arm 52″ Vertical Stroke
PM-42-S PM-42-A
| Reach – 40”-88” |
| Vertical Stroke- 52” |
| Lift Capacity: 0-90 lbs |
| Air: 90 PSI |
PM-43-S PM-43-A
| Reach – 28”-101” |
| Vertical Stroke- 52” |
| Lift Capacity: 0-90 lbs |
| Air: 90 PSI |
PM-44-S
| Reach – 16”-113” |
| Vertical Stroke- 52” |
| Lift Capacity: 0-90 lbs |
| Air: 90 PSI |
