FlexJET
FlexJET
The FlexJet is the world’s fastest moving waterjet with the top speed, maximum acceleration, proven performance, and reliable service. Our unique, actual 5-axis design allows the FlexJet to set itself apart by achieving taperless cutting in challenging to reach areas and giving the flexibility to cut any angle.
Features / Benefits
X – 1,800 IPM
Y – 1,800 IPM
Z – 1,000 IPM
1G – Acceleration / Deceleration
The speed of a waterjet will tell you how fast you can cut in a straight line but in the real world, parts are not just straight. The ability of your waterjet to get up to speed quickly is the most important factor in determining how quickly you will end up with cut parts in your hands.
B – >120°
C – 360° (Infinite)
Patent pending mechanical design
Taper Control
Advanced look ahead
Patent pending motion control
Use any CAD/CAM software
| Options | FL Series | F Series | FLX Series |
|---|---|---|---|
| 5-Axis with taper Compensation | ✹ | ✹ | |
| Intensifier Pump 90,000 PSI | ✹ | ✹ | |
| Garnet Removal | ✹ | ✹ | ✹ |
| Closed Loop Chiller | Standard (Manual) | Standard (Manual) | Standard (Manual) |
| Water Level Control | Column 2 Value | Column 1 Value | Column 2 Value |
| Water Only | ✹ | ✹ | ✹ |
| Water Recycling System | ✹ | ✹ | ✹ |
| Multiple Cutting Heads | ✹ | ✹ | ✹ |
| Vision Systems | ✹ | ||
| Dual Gantry | ✹ | ||
| Hand Pendant | ✹ | Standard | Standard |
| Roll Around Control | Standard | Standard | Standard |
| Pumps | FL Series | F Series | FLX Series |
|---|---|---|---|
| 30 HP 60,000 PSI | Standard | ||
| 40 HP 60,000 PSI | Optional | Standard | |
| 50 HP 60,000 PSI | Optional | Optional | Standard |
| 100 HP 60,000 PSI | Optional | ||
| 60 HP 90,000 PSI | Optional | Optional | |
| 125 HP 90,000 PSI | Optional |
Available Models
FL-Series (Cantilever)
The FL-Series is a highly accurate waterjet machine at a cost-effective price. The all-steel rigid two-piece construction features a helical rack and pinion for faster acceleration/deceleration, higher accuracy, and increased longevity. The FL-Series features a cantilever design allowing for loading access to all three sides of the machine.
The FlexJet FL-Series boasts the fastest rapids in its class at 1,500 inches per minute on the X and Y-axis and 750 inches per minute on the Z-axis with Acceleration and Deceleration rates of .5G, without sacrificing accuracy. It comes standard with a 30 HP pump and an abrasive cutting system. Installation, training, 2-year warranty, and Complete Care+ are included with all FlexJet Models.
C-20-02
The F-Series Waterjet offers reliability, speed, and performance at a value. The all-steel rigid two-piece construction features a helical rack and pinion for faster acceleration/deceleration, higher accuracy, and increased longevity. The F-Series features a cantilever design giving you three-sided access for easy loading and unloading.
The FlexJet F-Series offers faster rapids than the competition. It can rapid at 1,600 inches per minute on the X and Y-axis and 850 inches per minute on the Z-axis with .7G Acceleration/Deceleration without sacrificing accuracy. It comes standard with a 40 HP pump, an abrasive cutting system, and has the adaptability to mount multiple cutting heads or a 5-axis cutting head. Installation, training, 2-year warranty, and Complete Care+ are included with all FlexJet models.
C-20-02

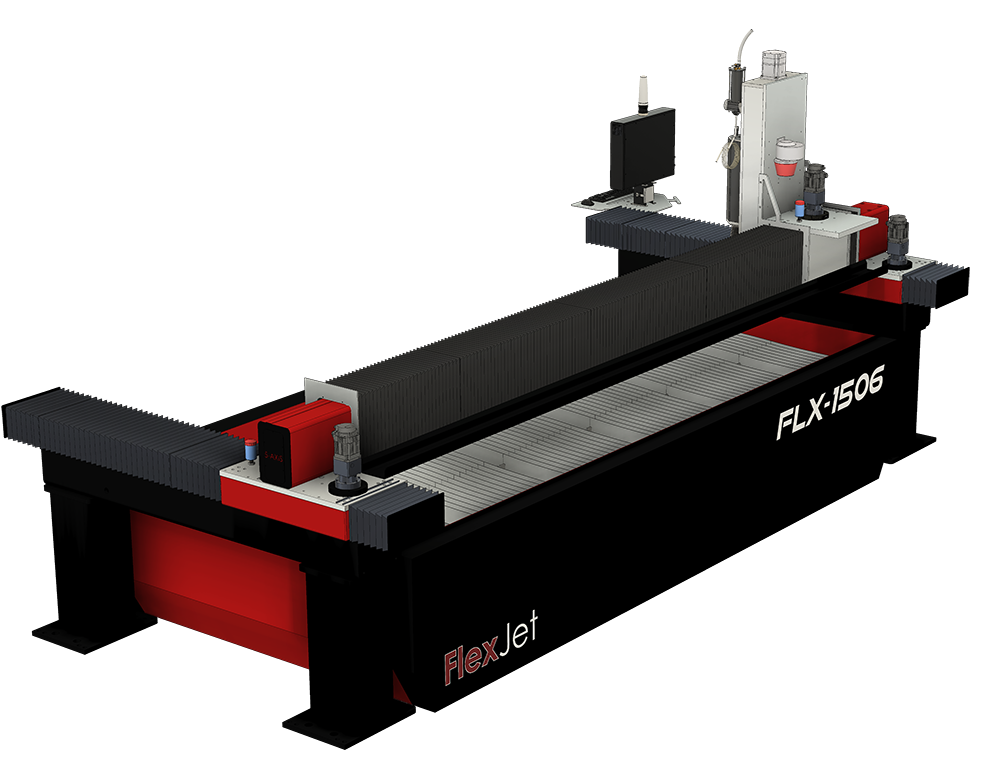

The FLX-Series is a workhorse made for high performance, speed, and accuracy. The all-steel rigid two-piece construction features a helical rack and pinion for faster acceleration/deceleration, higher accuracy, and increased longevity. The FLX-Series features a gantry-style design for maximum rigidity during rigorous use.
The FlexJet FLX-Series offers the fastest rapids in the market, moving at 1,800 inches per minute on the X and Y-axis and 1,000 inches per minute on the Z-axis with 1G Acceleration/Deceleration without sacrificing accuracy. It comes standard with a 50 HP pump, an abrasive cutting system, and has the adaptability to mount multiple cutting heads or a 5-axis cutting head. The X-Series waterjet line can be customized to fit your specific needs. Installation, training, 2-year warranty, and Complete Care+ are included with all FlexJet Models.
