Automatic Horizontal Pivot Band Saw
Exceptional Miter Cutting for Heavy-Duty Applications

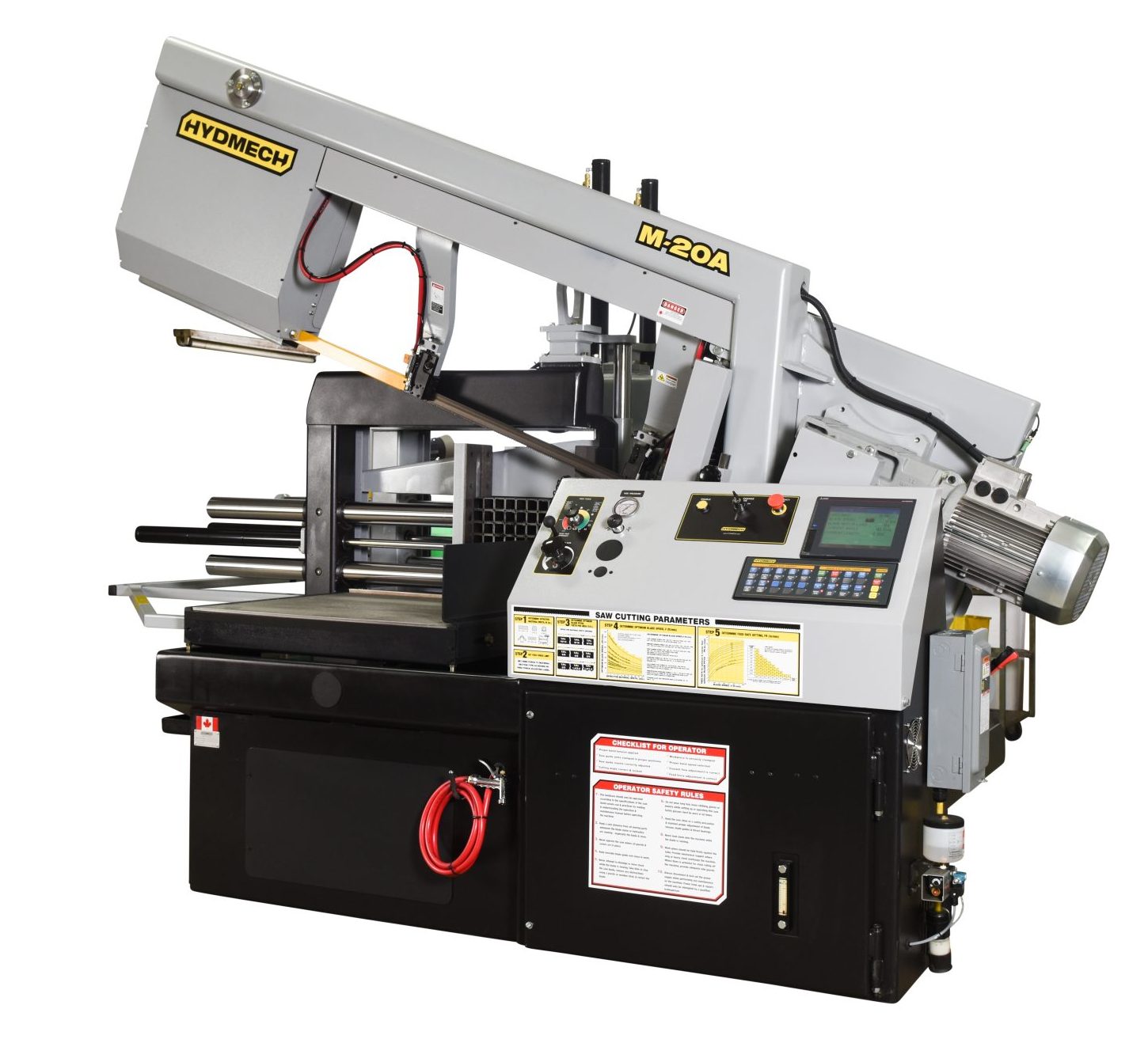

The HYDMECH M-20A features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material.
The M-20A band saw’s standard PLC 500 control features a “go to” function which allows automatic alternating between programmed angles. The M-20A miters from 90° to 60°.

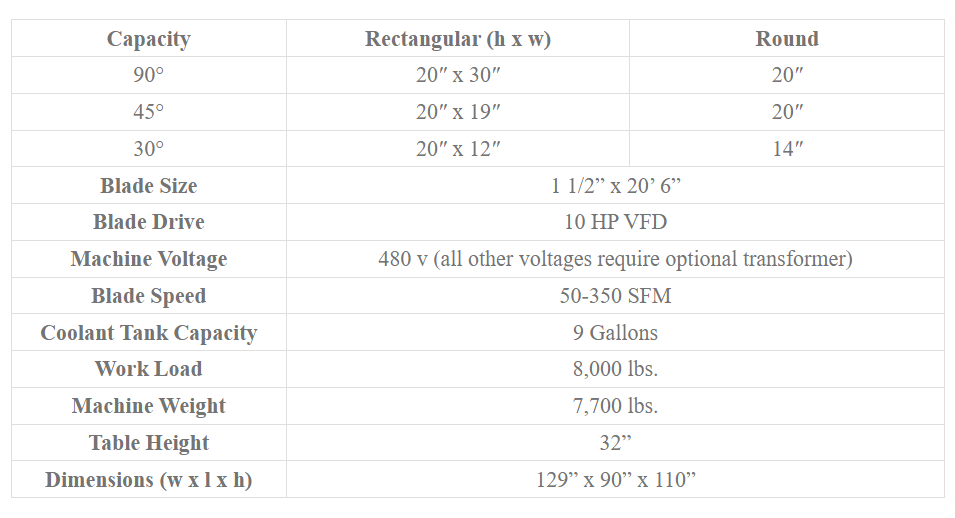

Featuring a 20″H x 30″W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A is a reliable choice for your heavy-duty metal cutting applications.
Standard Features
Automatic programmable mitering with “go to” angle from 90° to 30°
Guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
Full capacity, full stroking hydraulic vises
Blade chamber separates material from cut part
Automatic PLC control programmable up to 99 jobs with 5 in queue.
Robust steel base
Easy access electrical panel and hydraulics
Hardened replaceable wear plates on material vises
Safety door interlocks
Laser light & work light
Variable vise pressure
Automatic multi-indexing up to 33” in a single stroke.
10 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Cast iron band wheels
Replaceable blade brush
Automatic chip removal auger
Blade breakage switch
Hydraulic band and carbide guide tensioning
Flood coolant with wash down hose
Out of stock switch
