Automatic Vertical Band Saw
With 60 Degree Two-Way Miter

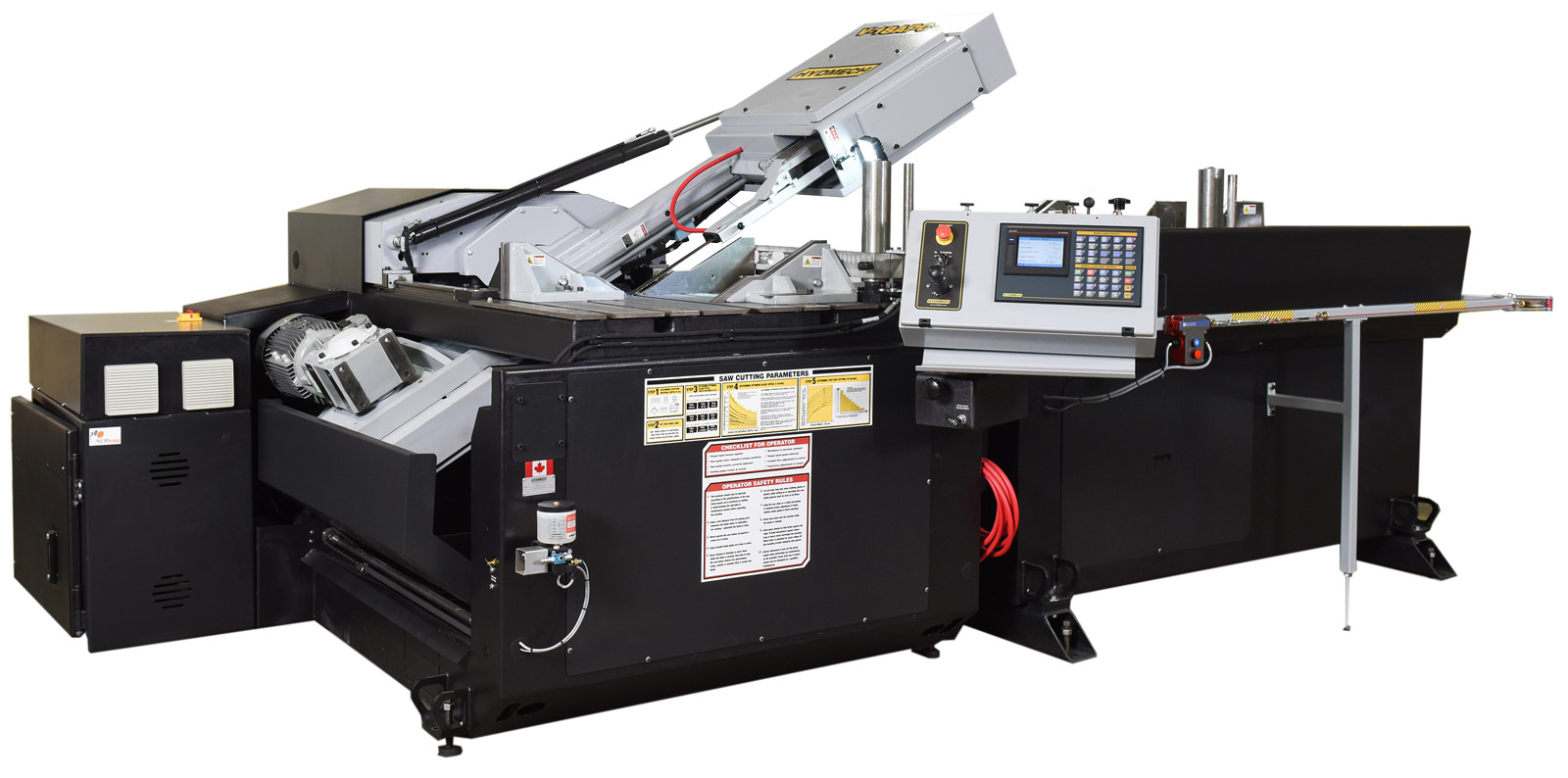

The V-18APC-60 is a automatic vertical band saw with the ability to miter from 60° left to 60° right. You can choose a left or right side infeed. A 3 degree fixed canted head allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing.
Standard Features
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Automatic multi-indexing up to 40” in a single stroke
Automatic PLC control programmable up to 1000 jobs with 5 in queue
7.5 HP VFD. True direct blade drive – no belts/pulleys
Out of stock switch
Replaceable blade brush
Easy access electrical panel and hydraulics
Drag chain chip conveyor
Hydraulic band tensioning with digital readout
2 HP hydraulic pump provides system pressure
Flood coolant with wash down hose
3 degree canted head
Four full stroking hydraulic vises (feed, main, and outboard) and squaring vise
Powered movable guide arm
Hydraulic overhead bundling and DDF system
Blade chamber separates material from cut part
Cast iron band wheels
Robust steel base
Blade breakage switch
You choose left or right side infeed
Replaceable carbide guide inserts
Safety door interlocks
Laser light and Work light
Variable vise pressure
